Rubber Timing Belts (Endless)
Rubber Timing Belts (Endless)
Rubber timing belts are essential components in mechanical systems designed to ensure precise synchronization of motion. They are widely used in various applications due to their durability, flexibility, and cost-effectiveness. A rubber timing belt is a toothed belt made of synthetic rubber materials, reinforced with fibers or cords, used in systems where synchronized movement between components is required. The teeth on the belt mesh with grooves on a pulley, preventing slippage and ensuring accurate motion transfer.
Inch Pitch Timing Belt
Belts with tooth spacing measured in inches, used in older systems and applications designed with imperial units.
Metric Pitch Timing Belt
Belts with tooth spacing measured in millimetres, common in modern European and international machinery.
HTD (High Torque Drive)
Belts with rounded teeth for improved load capacity and reduced slippage, ideal for high-torque applications.
STS (Super Torque System)
Advanced belts with curved teeth for better power transmission and higher torque in compact systems.
RPP (Reinforced Parabolic Profile)
Belts with parabolic teeth to reduce wear, enhance durability, and operate quietly.
RHP (Reinforced High Performance)
High-performance belts designed for heavy-duty applications with enhanced load-carrying capacity
Special Pitch Timing Belt
Customized belts with non-standard tooth pitches for unique or specialized industrial applications.
Special Purpose Timing Belt
Tailored belts designed for specific functions, such as food-grade, flame-resistant, or anti-static belts
Double Tooth Timing Belt
Belts with teeth on both sides, enabling power transmission to pulleys on either side for complex systems.
Open-End Timing Belt
Non-looped belts cut to specific lengths for linear motion applications like 3D printers or CNC machines
TYPE | Pb | Ht | Hs |
MXL | 2.032 | 0.51 | 1.14 |
XL | 5.080 | 1.27 | 2.30 |
L | 9.525 | 1.91 | 3.60 |
H | 12.7 | 2.29 | 4.30 |
XH | 22.225 | 6.35 | 11.20 |
XXH | 31.75 | 9.53 | 15.70 |
S 2M | 2 | 0.76 | 1.36 |
S 3M | 3 | 1.14 | 2.20 |
S 4.5M | 4.5 | 1.71 | 2.81 |
S 5M | 5 | 1.91 | 3.41 |
S 8M | 8 | 3.04 | 5.6 |
S 14M | 14 | 5.3 | 10.2 |
RPP 2M | 2 | 0.76 | 1.36 |
RPP 3M | 3 | 1.15 | 1.9 |
RPP 5M | 5 | 1.95 | 3.5 |
RPP 8M | 8 | 3.2 | 5.5 |
RPP 14M | 14 | 6 | 10 |
HTD 2M | 2 | 0.75 | 1.36 |
HTD 3M | 3 | 1.17 | 2.40 |
HTD 5M | 5 | 2.06 | 3.80 |
HTD 8M | 8 | 3.38 | 6.00 |
HTD 14M | 14 | 6.02 | 10.00 |
HTD 20M | 20 | 8.4 | 13.20 |
T2.5 | 2.5 | 0.7 | 1.3 |
T5 | 5 | 1.2 | 2.2 |
T10 | 10 | 2.5 | 4.5 |
T20 | 20 | 5 | 8 |
AT5 | 5 | 1.2 | 2.7 |
AT10 | 10 | 2.5 | 5 |
AT15 | 15 | 3.8 | 6.3 |
AT20 | 20 | 5 | 8 |

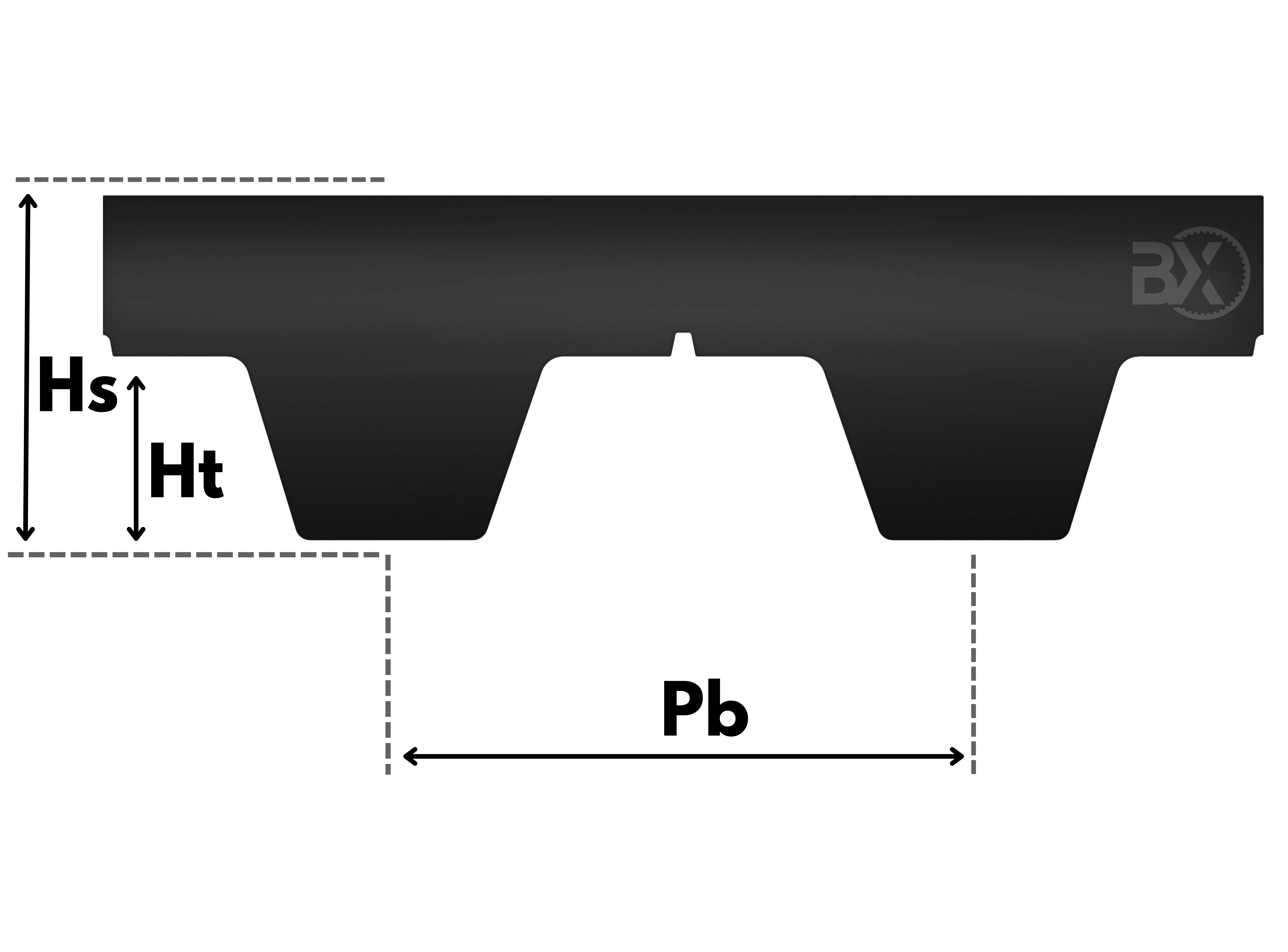

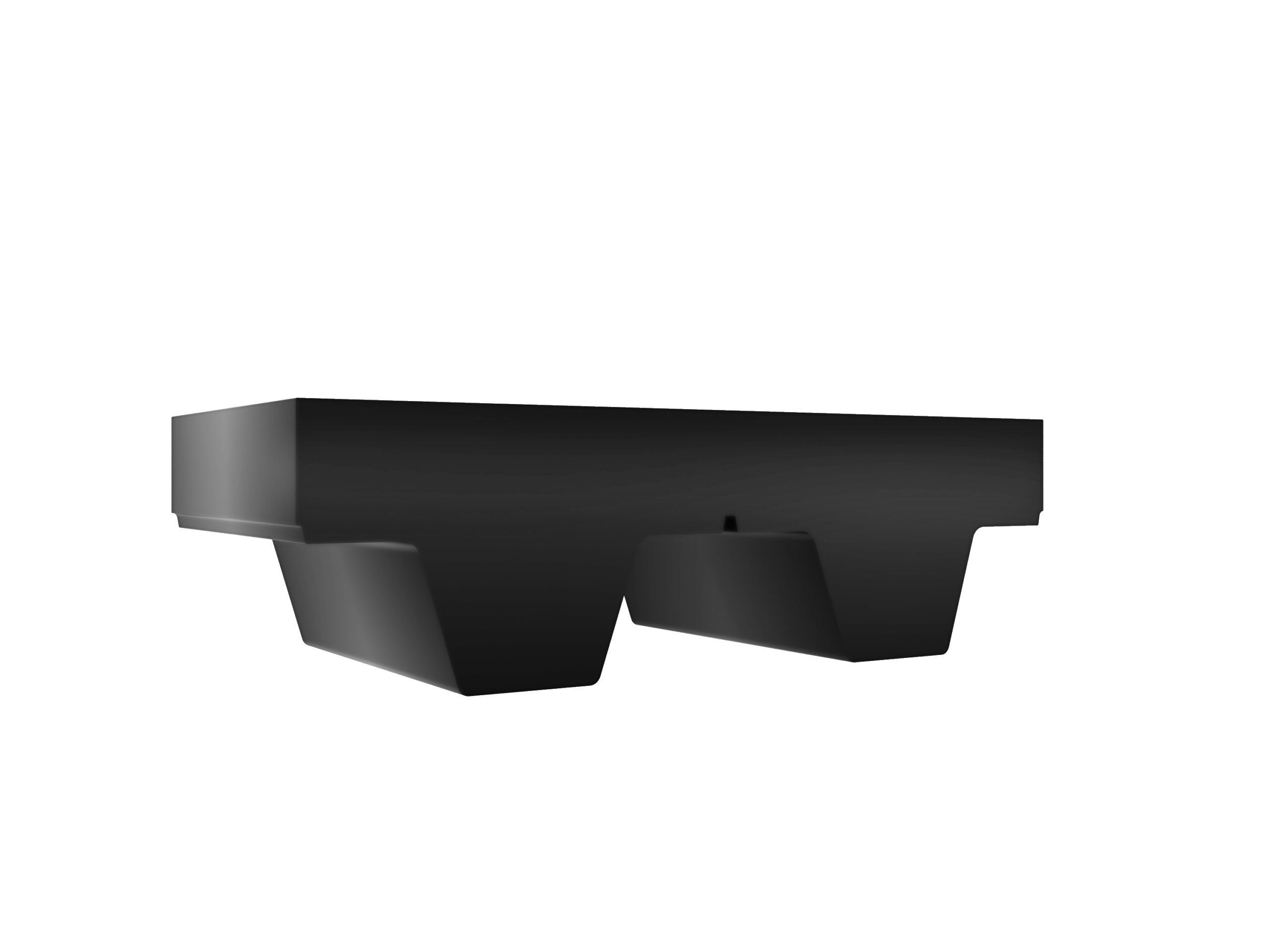

Profile for L/ XL/ MXL/ H/ XH/ XXH

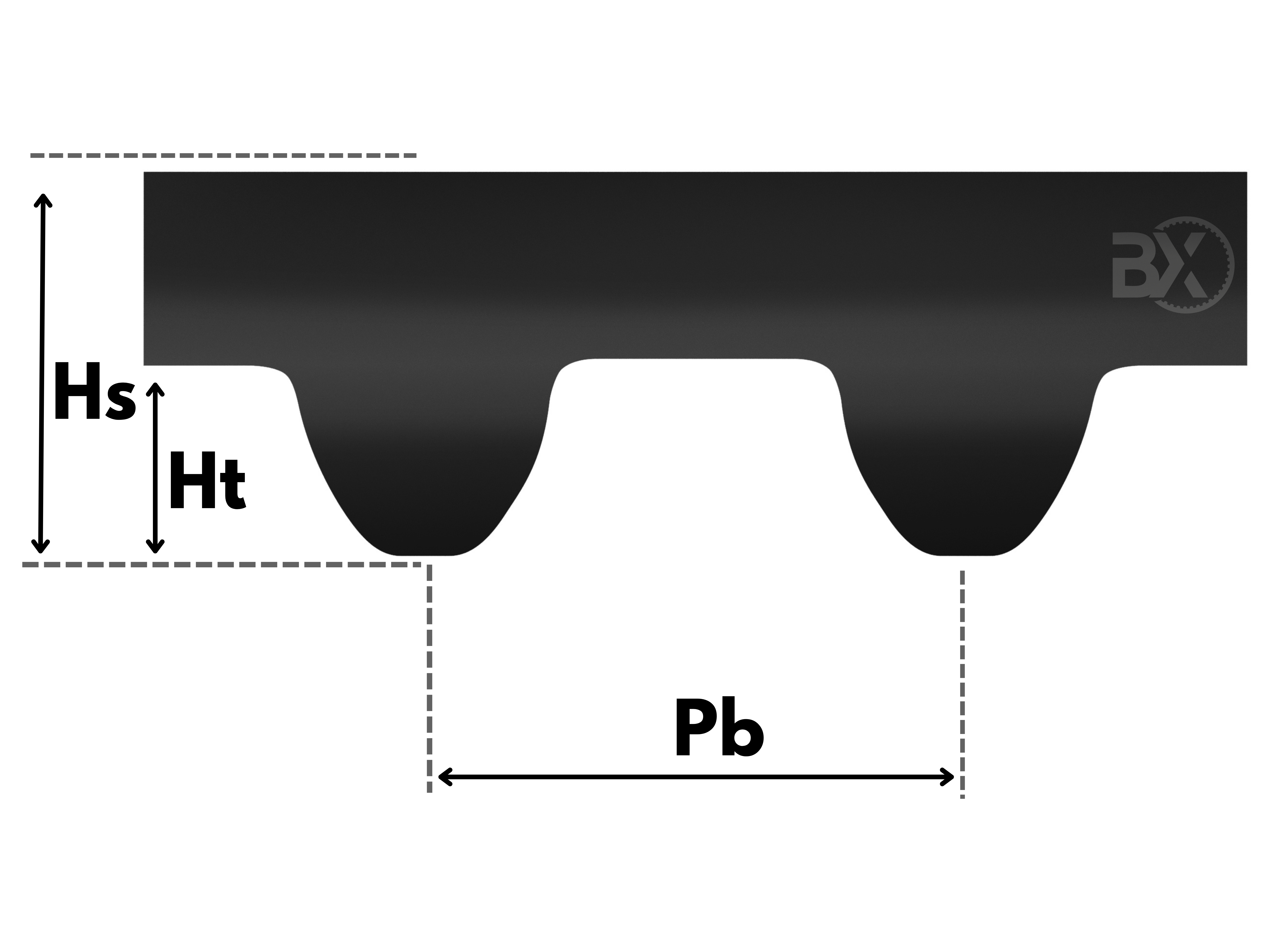

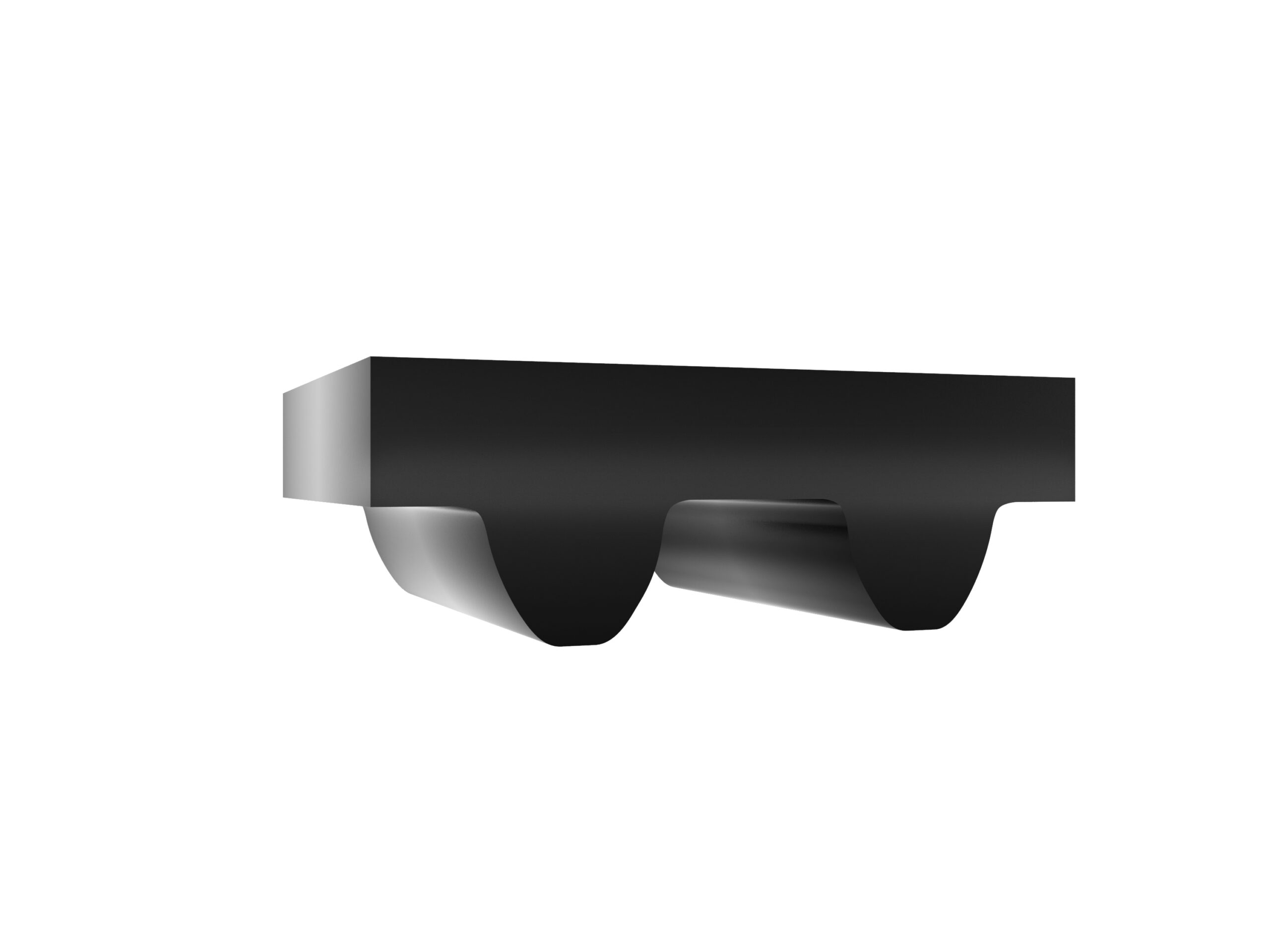

Profile for S 2M/ S 3M/ S 4.5M/ S 5M/ S 8M/ S 14M/ HTD 2M/ HTD 3M/ HTD 5M/ HTD 8M/ HTD 14M/ HTD 20M

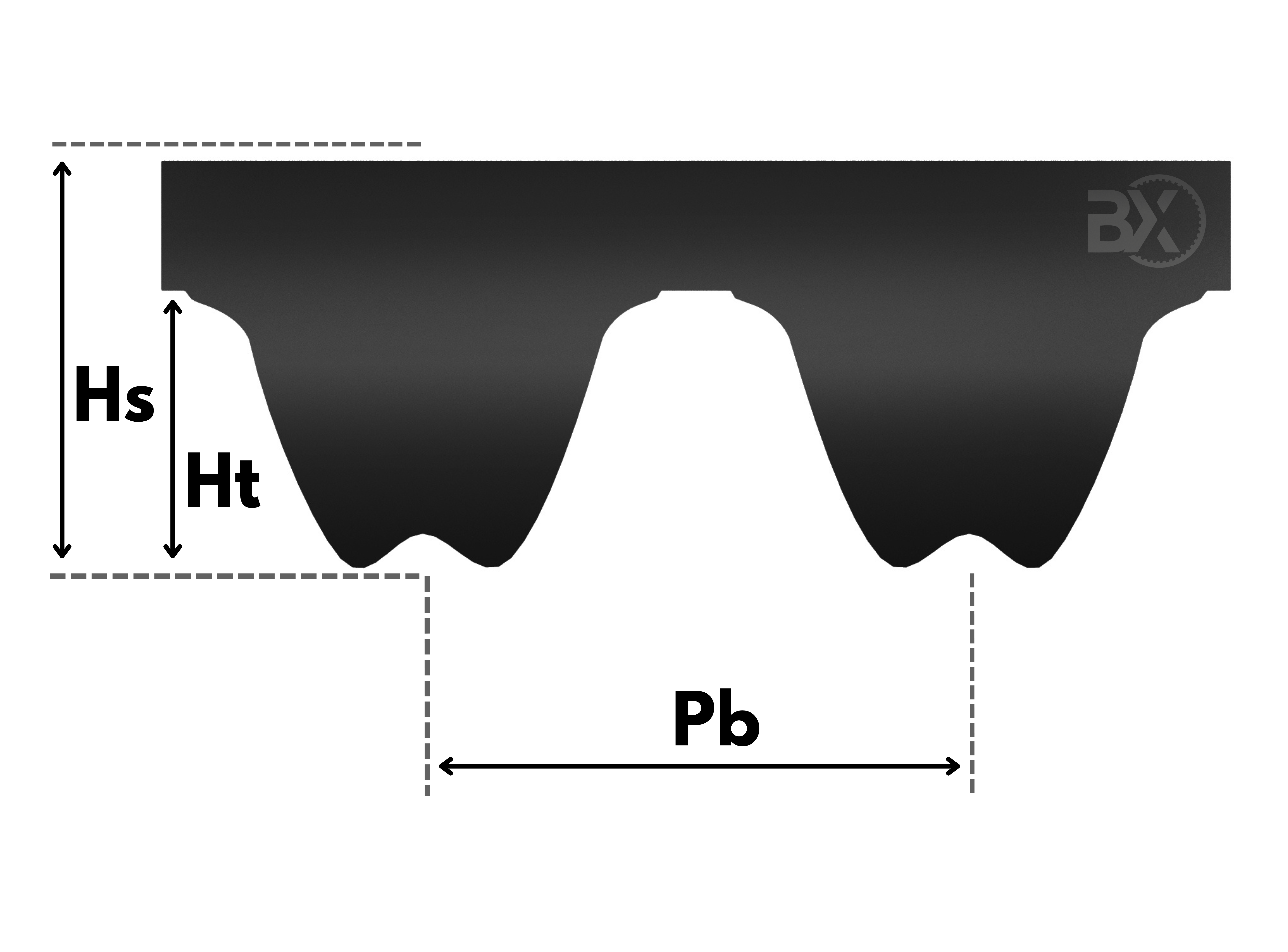

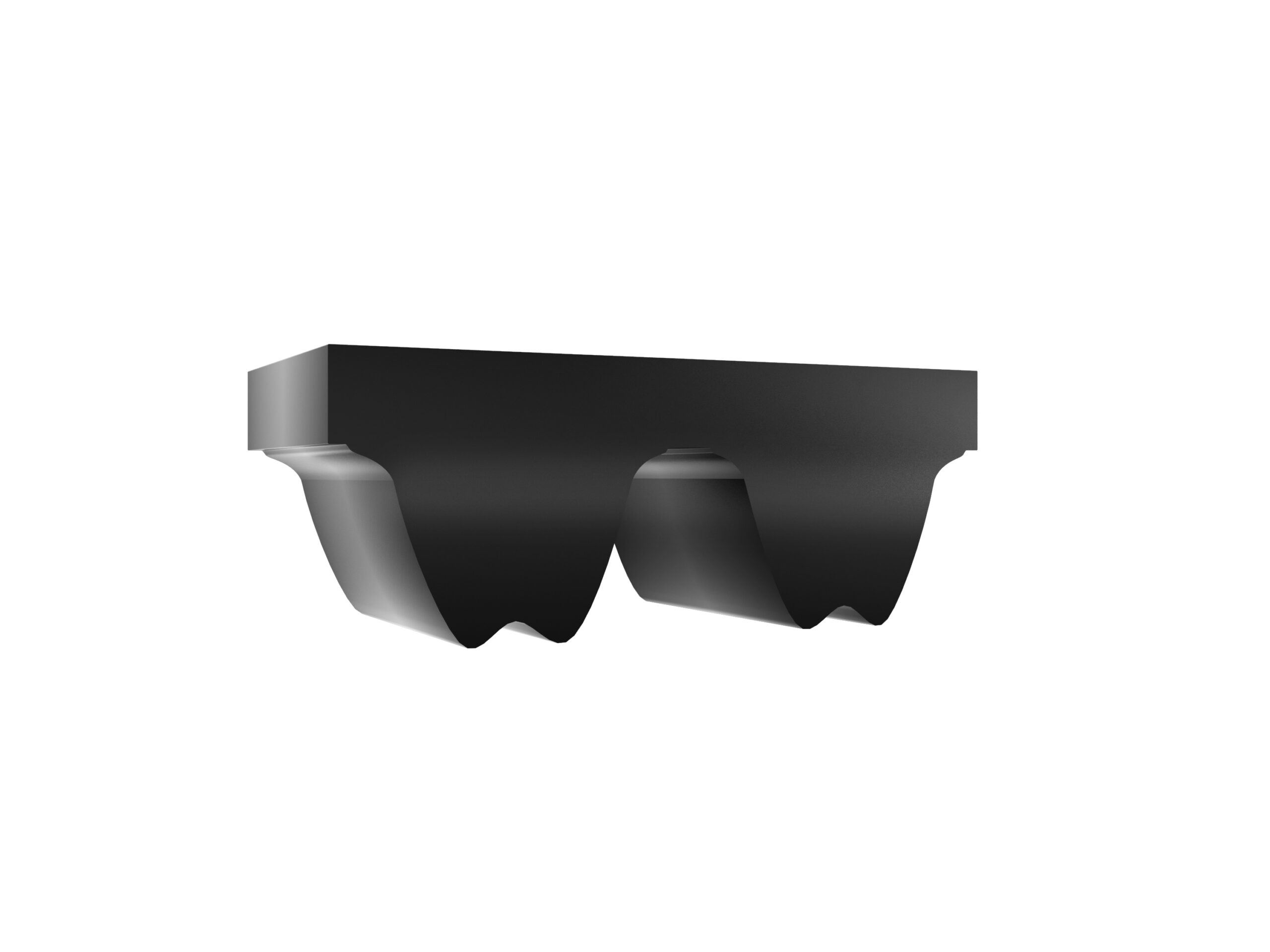

Profile for RPP 2M/ RPP 3M/ RPP 5M/ RPP 8M/ RPP 14M

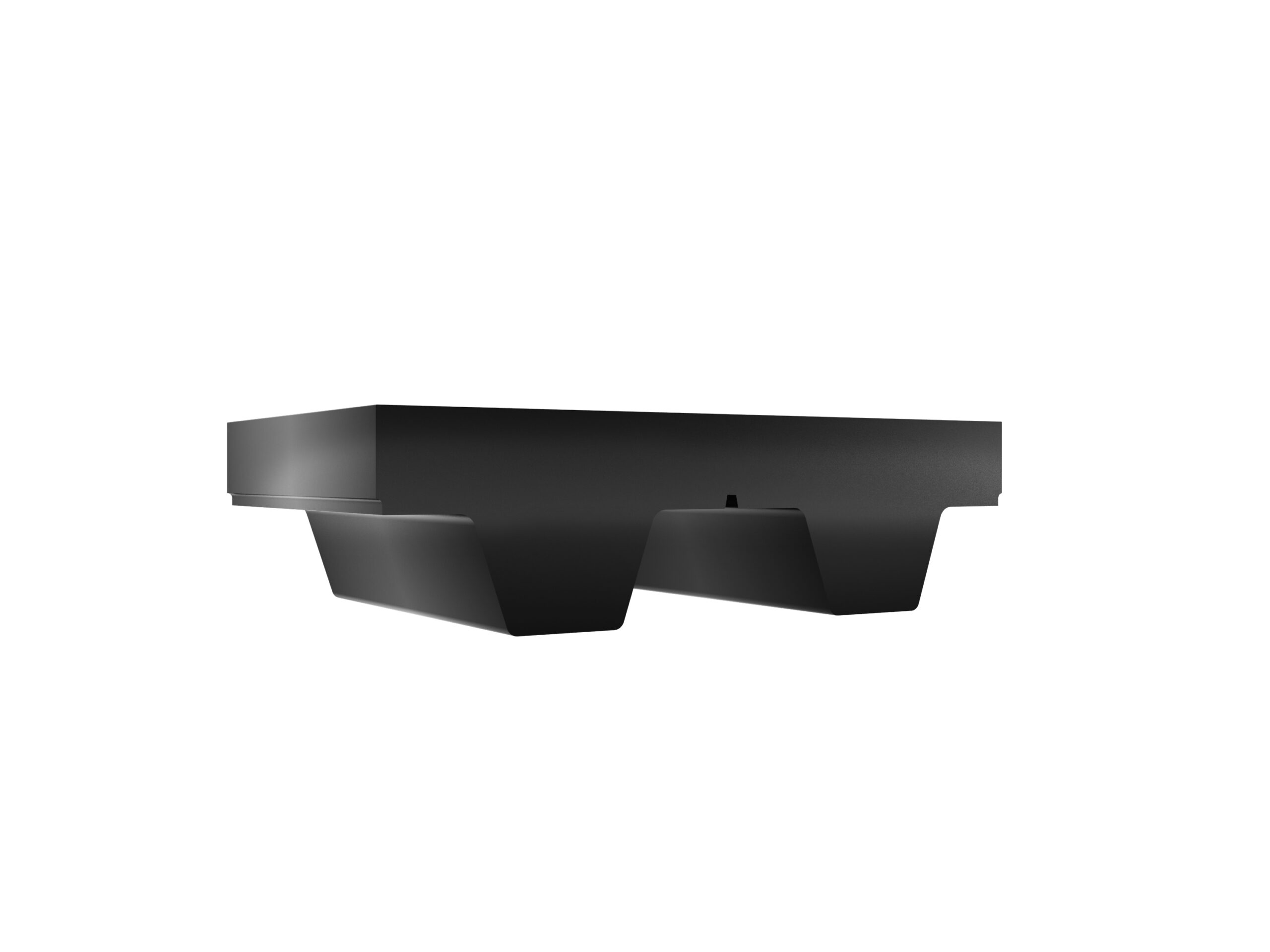

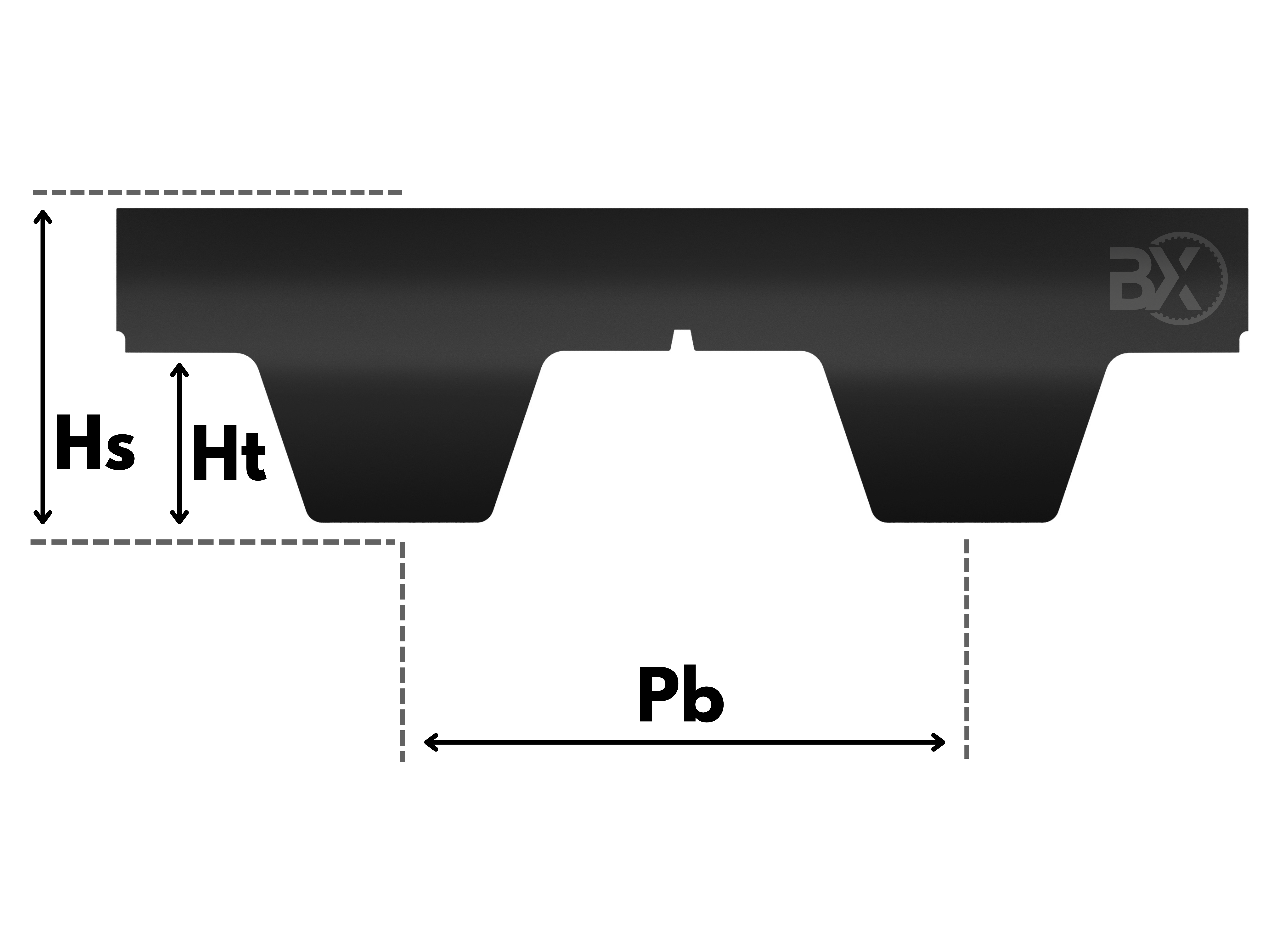

Profile for T2.5/ T5/ T10/ T20

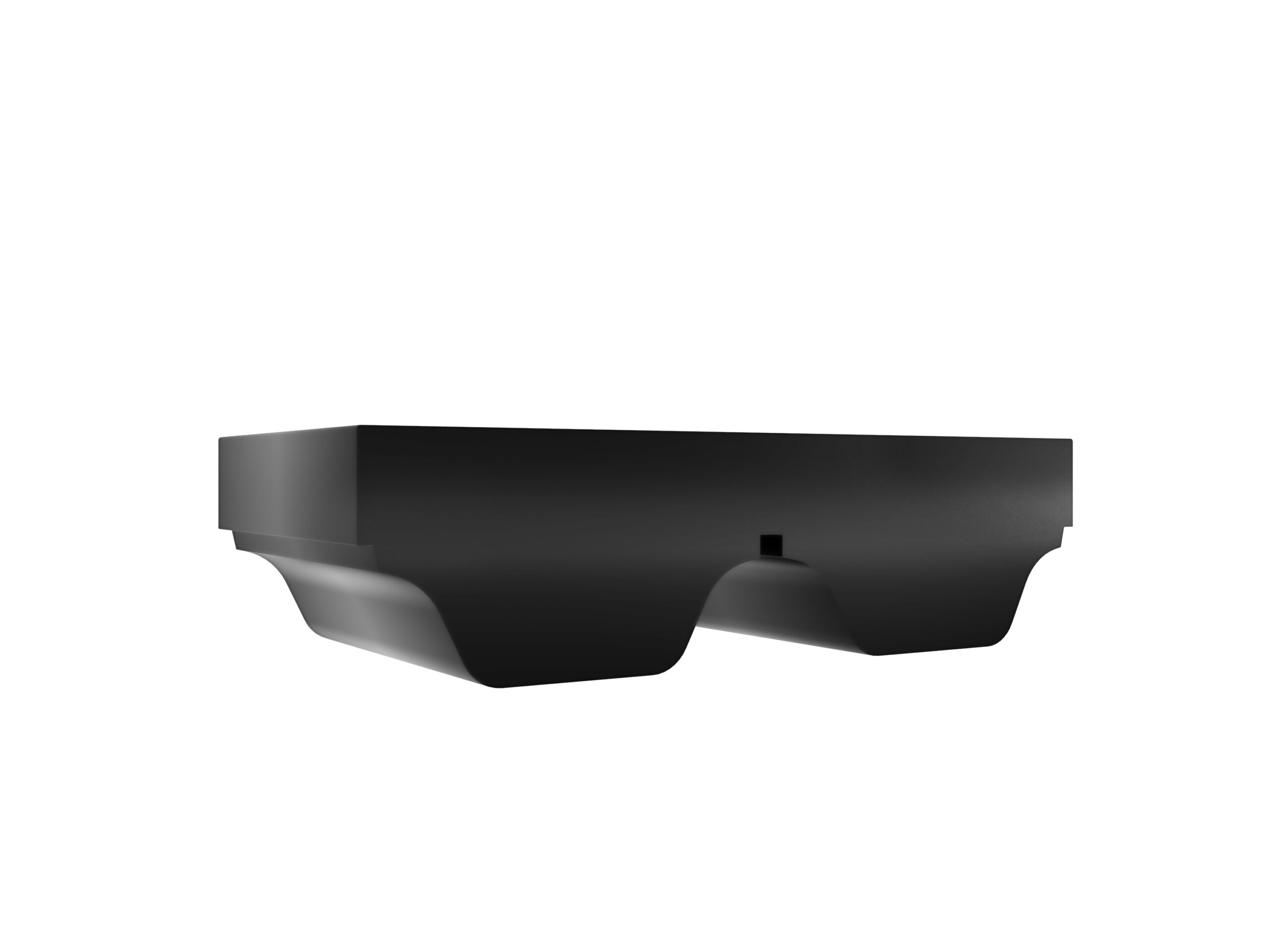

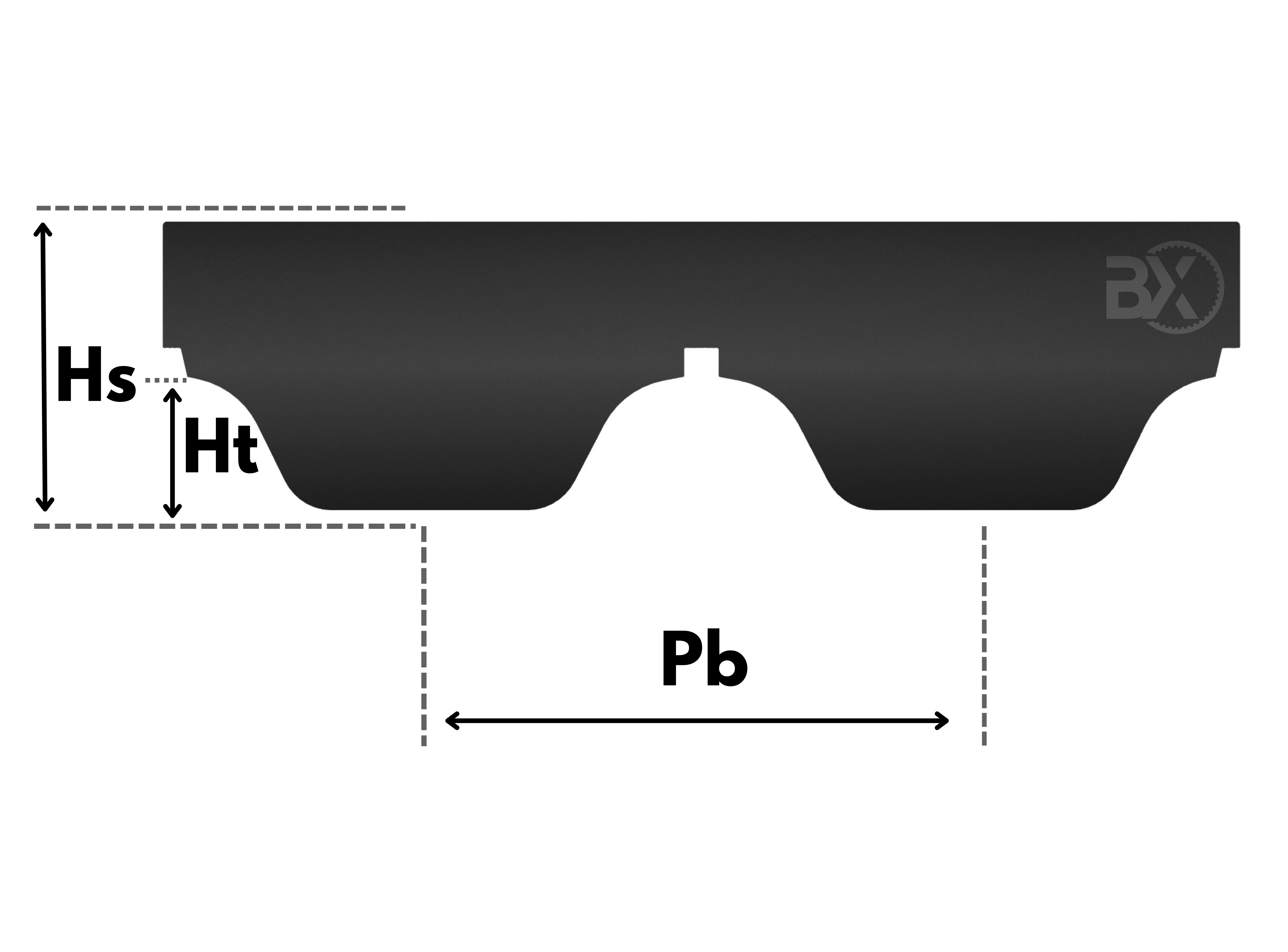

Profile for AT5/ AT10/ AT15/ AT20
