Double-sided timing belts are a type of toothed belt designed with teeth on both sides of the belt, enabling it to mesh with sprockets on either side. This design allows the belt to transfer power or synchronize movements from two different directions, making it highly efficient in certain mechanical systems.
T-Type Inch
A timing belt with a trapezoidal tooth profile, where the tooth pitch is measured in inches; commonly used in industrial applications for accurate power transmission.
T-Type Metric
Similar to T-Type Inch but with a pitch measurement in millimetres, offering precise synchronization in metric-based systems.
ARC Type Metric
A timing belt with an arcuate (curved) tooth profile, measured in millimetres, designed for quieter operation and smoother meshing in high-load or high-speed applications.

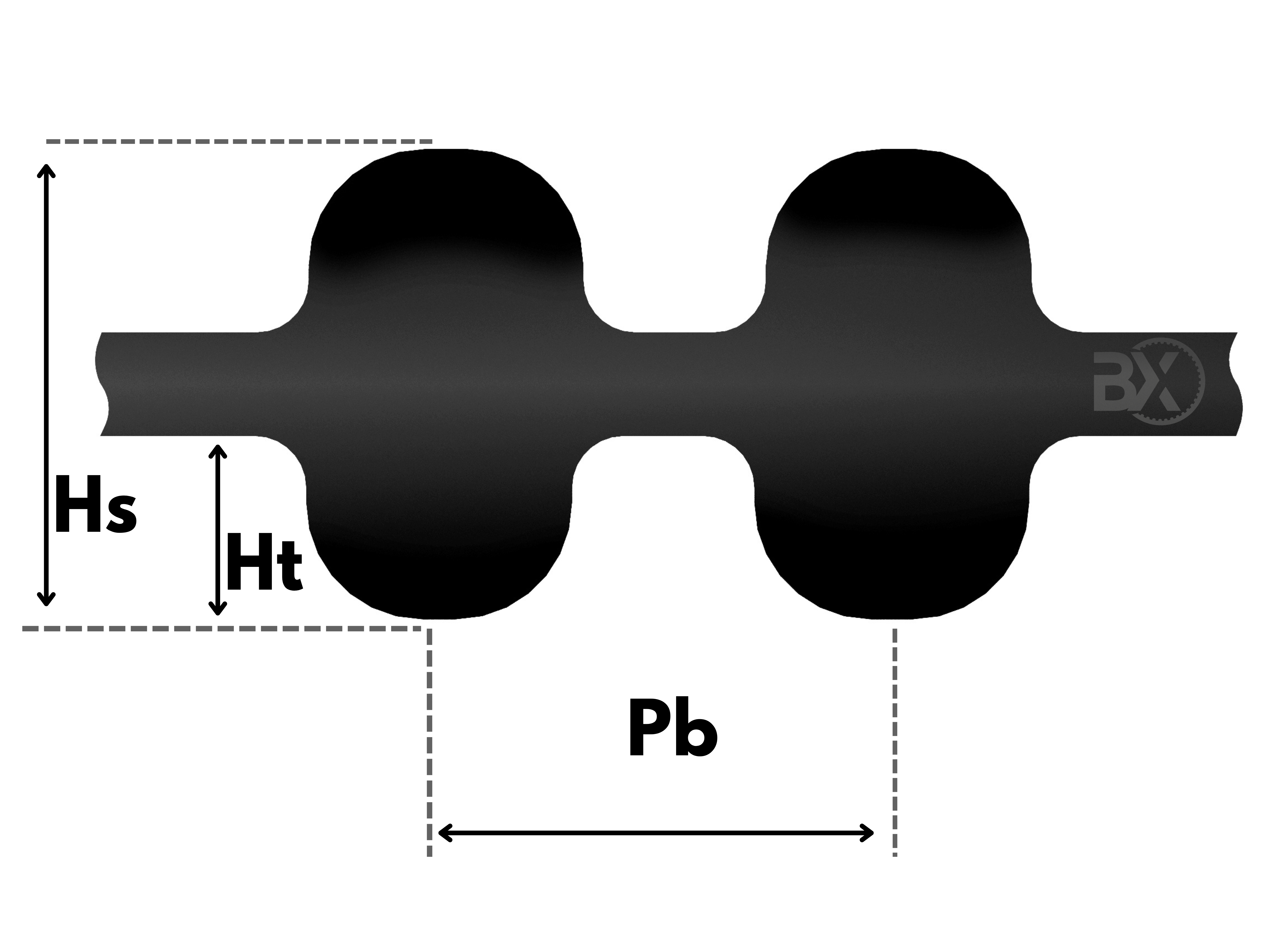

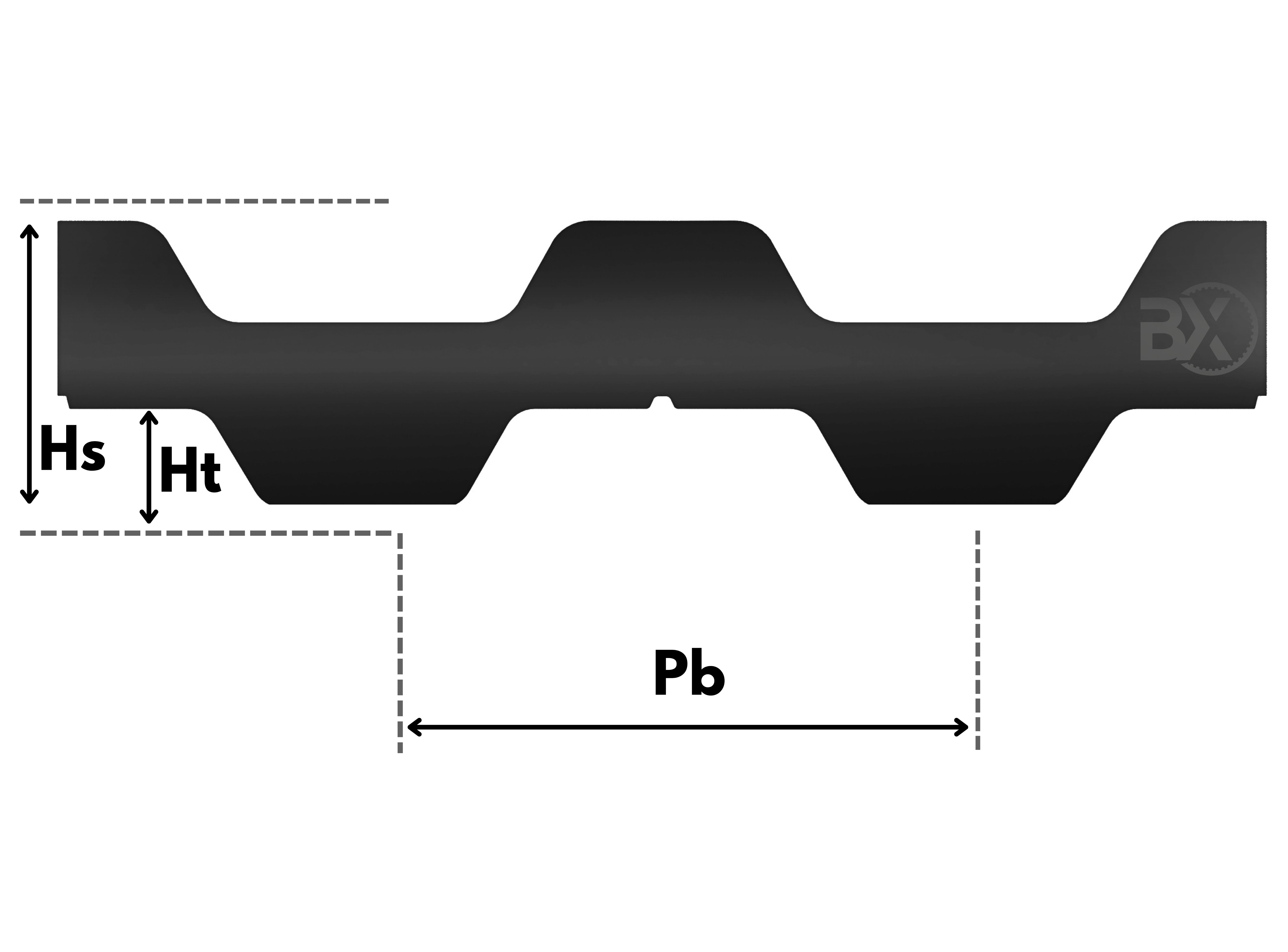

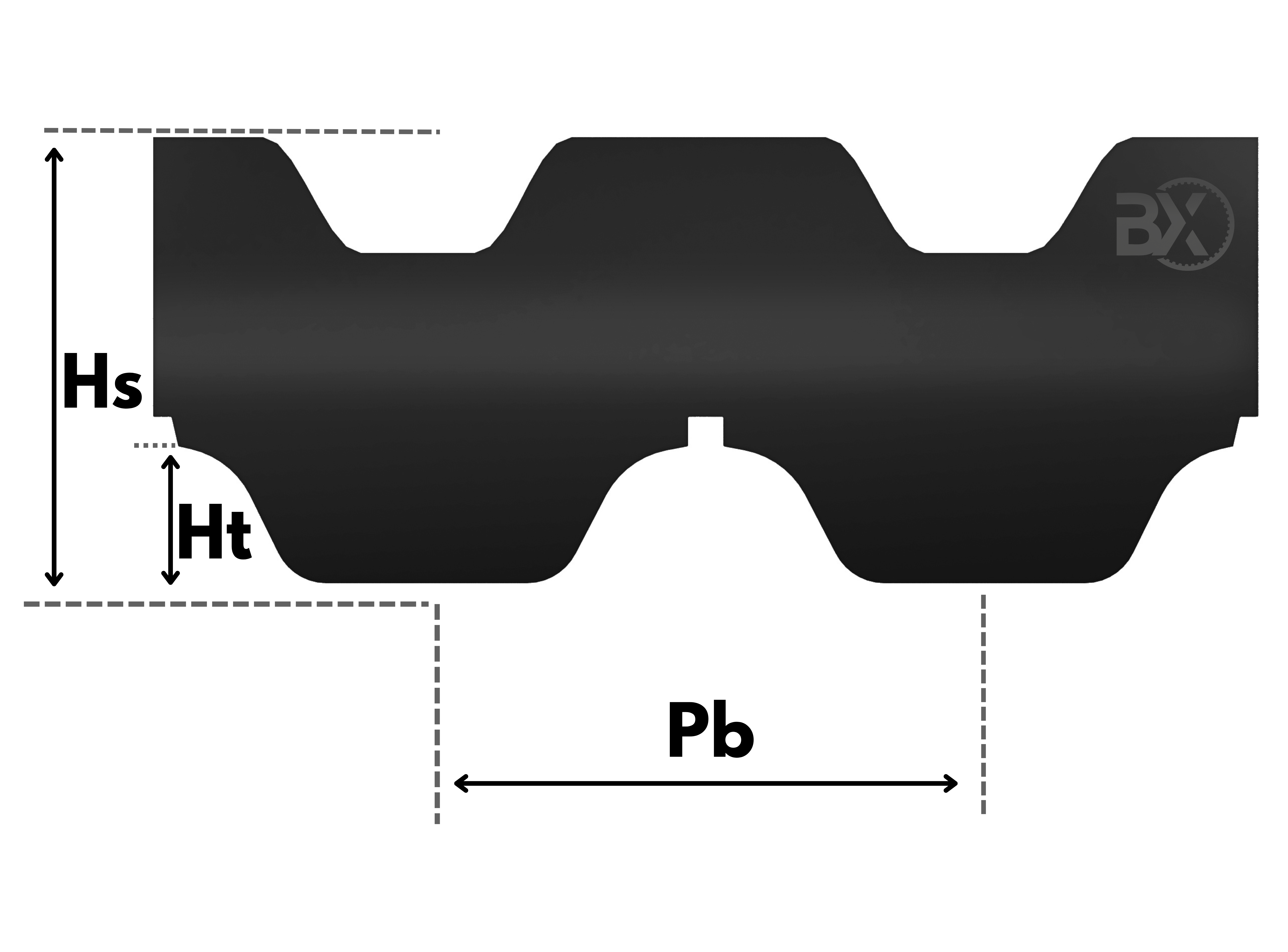

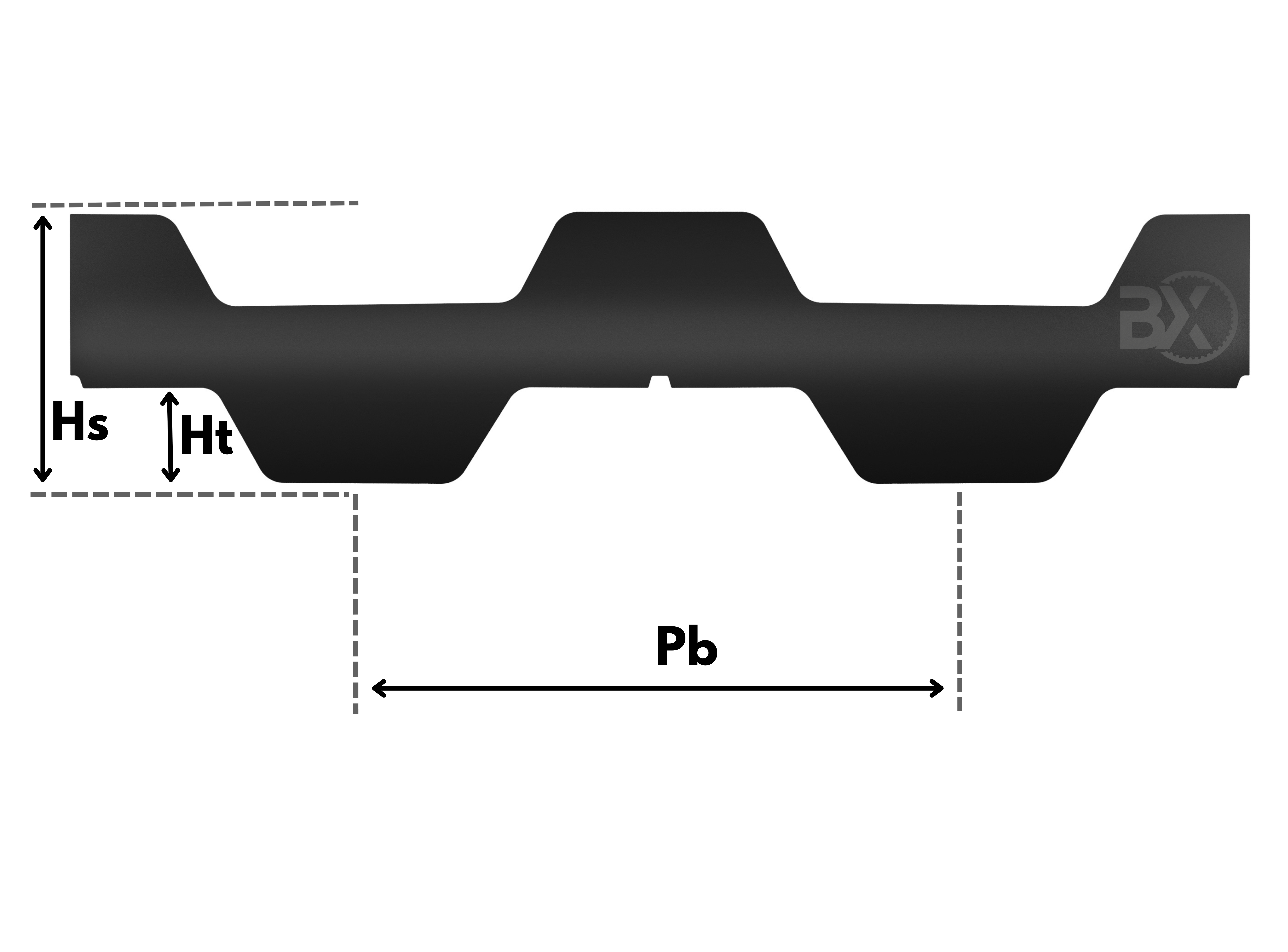

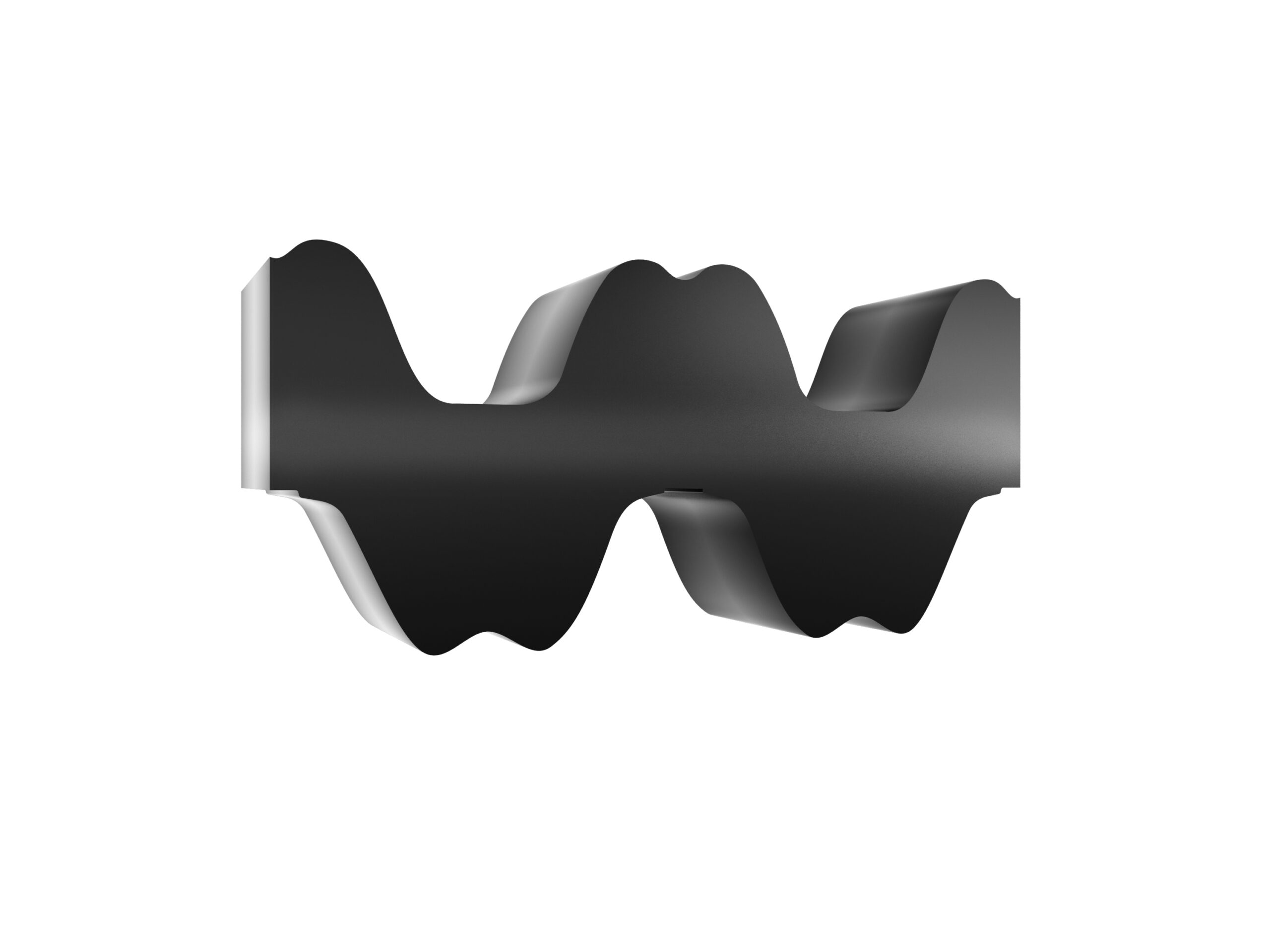

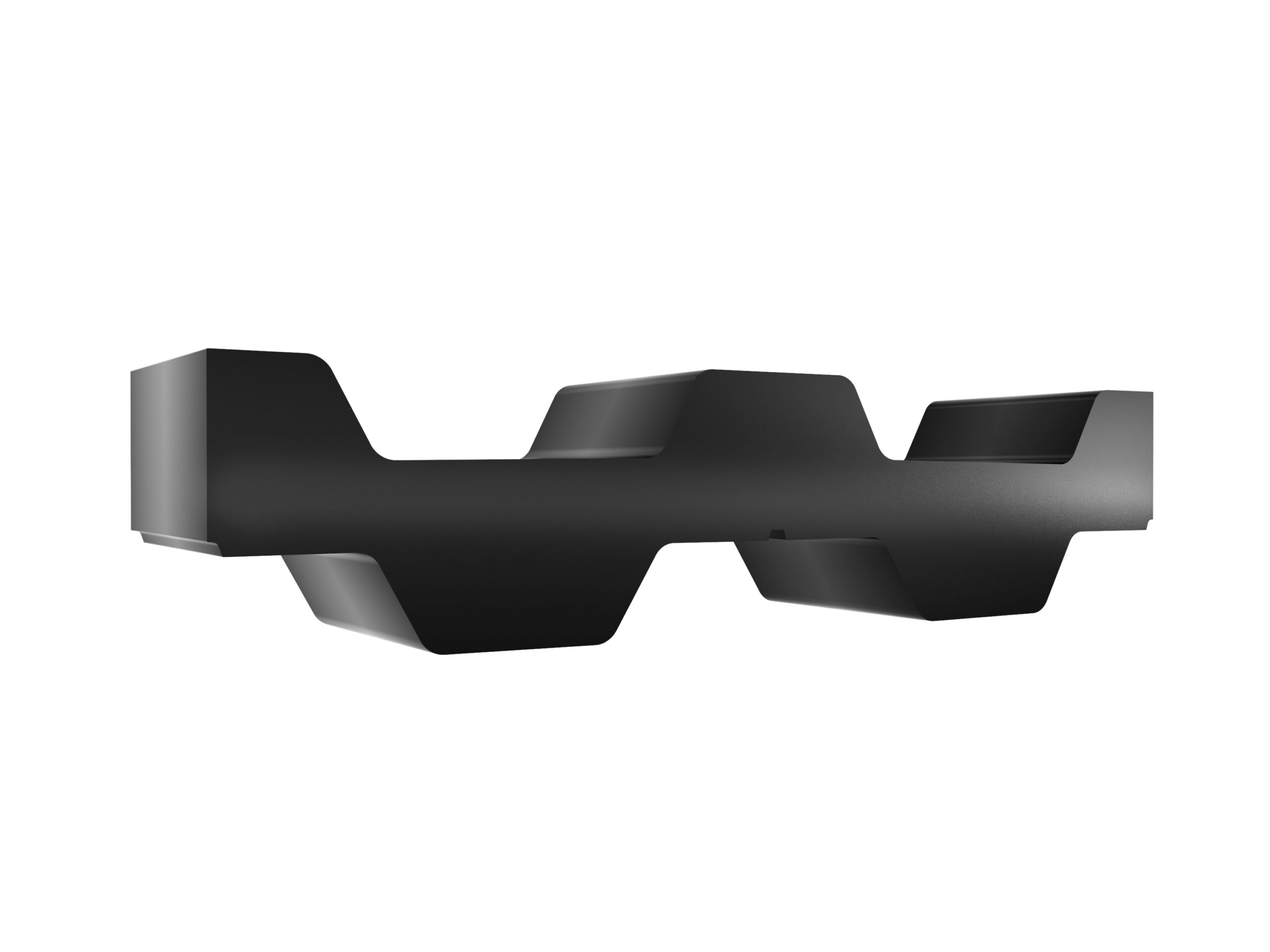

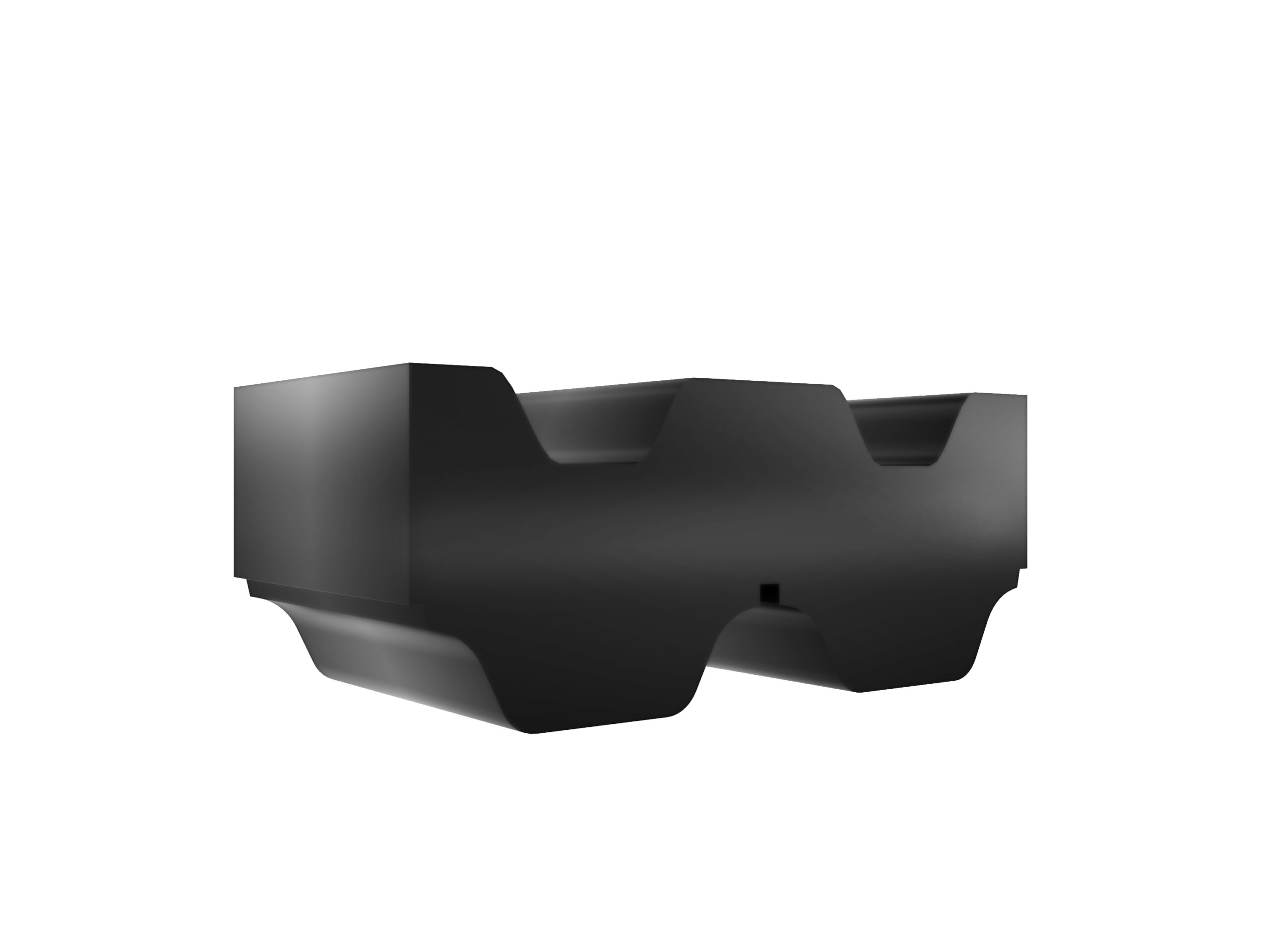

Type | Pb | Ht | Hs |
LDS | 9.525 | 1.9 | 4.58 |
HDS | 12.7 | 2.29 | 5.95 |
XHDS | 22.225 | 6.35 | 15.49 |
XLDS | 5.08 | 1.27 | 3.05 |
3MDS | 3 | 1.17 | 3.1 |
5MDS | 5 | 2.06 | 4.78 |
8MDS | 8 | 3.38 | 8.17 |
14MDS | 14 | 6 | 14.79 |
S5MDS | 5 | 1.91 | 3.4 |
S8MDS | 8 | 3.05 | 7.47 |
RPP8DS | 8 | 3.2 | 7.2 |
RPP14DS | 14 | 6 | 14.5 |
T5DS | 5 | 1.2 | 3.4 |
T10DS | 10 | 2.5 | 4.5 |
T20DS | 20 | 5 | 13 |
AT5DS | 5 | 1.2 | 3.9 |
AT10DS | 10 | 2.5 | 7 |
AT20DS | 20 | 5 | 13 |
