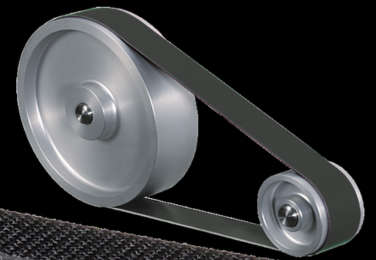

Flat Belts
Wide, rectangular belts designed to run on flat pulleys, ideal for smooth and efficient power transmission. Commonly used in light-duty conveyors for transporting goods in factories and warehouses, as well as in the textile industry for weaving and spinning machines.
Benefits
- Low-Cost Solution: Flat belts are typically less expensive than other types of belts.
- Simple Design: Easy to install and replace.
- Long-Lasting: Can last a long time if used in low-to-moderate power transmission applications.
Types of Flat Belts
Seamless Flat Belts
Joint-free belts made from durable chloroprene rubber with anti-heat, anti-oil, and anti-wear properties, reinforced with high-strength...
Poly Flex Belts (Single Rib & Multiple Ribs)
Flexible polyurethane belts with ribbed designs for compact and efficient power transmission.
Rubber Nylon Sandwich Belt
A durable belt made with rubber layers and nylon reinforcement, ideal for heavy-duty industrial applications.
Type | Top/Bottom | Nylon Thickness | Total Thickness |
RR1 | Rubber / Rubber | 8 mm | 2.0 mm |
RR2 | Rubber / Rubber | 1.6 mm | 3.0 mm |
RR3 | Rubber / Rubber | 2.4 mm | 4.0 mm |
RR4 | Rubber / Rubber | 3.2 mm | 5.0 mm |
Leather Nylon Sandwich Belt
Combines leather’s grip and flexibility with nylon’s strength for precision-driven tasks.
Type | Top/Bottom | Nylon Thickness | Total Thickness |
LL06 | Leather/Leather | 0.4 mm | 3.5 mm |
LL10 | Leather/Leather | 0.8 mm | 4.0 mm |
LL14 | Leather/Leather | 1.2 mm | 5.0 mm |
LL20 | Leather/Leather | 1.6 mm | 6.0 mm |
Leather-Fabric Nylon Sandwich Belt
A hybrid belt featuring leather, fabric, and nylon, designed for versatile usage in industrial settings.
Type | Top/Bottom | Nylon Thickness | Total Thickness |
LF06 | Fabric / Leather | 0.4 mm | 3.0 mm |
LF10 | Fabric / Leather | 0.8 mm | 3.5 mm |
LF14 | Fabric / Leather | 1.2 mm | 4.0 mm |
LF20 | Fabric / Leather | 1.6 mm | 5.0 mm |
Fabric Nylon Sandwich Belt
A lightweight yet strong belt with fabric layers and nylon core for smooth operation in moderate load tasks.
Type | Top/Bottom | Nylon Thickness | Total Thickness |
FF06 | Fabric / Fabric | 0.4 mm | 0.6 mm |
FF10 | Fabric / Fabric | 0.8 mm | 1.2 mm |
FF14 | Fabric / Fabric | 1.2 mm | 1.6 mm |
FF20 | Fabric / Fabric | 1.6 mm | 2.0 mm |
Seamless Flat Belts
Joint-free belts made from durable chloroprene rubber with anti-heat, anti-oil, and anti-wear properties, reinforced with high-strength, low-elongation cords for efficient high-speed transmission
| Type | |
| Size Range | Available from 100 mm – 5000 mm |
| Thickness Range | Available from 1.0 mm – 2.5 mm |
| Width Range | Available from 6.0 mm – 200mm |
Poly Flex Belts (Single Rib & Multiple Ribs)
Flexible polyurethane belts with ribbed designs for compact and efficient power transmission.
| Type | Top Width a | Thickness b | Angle | Pitch | Size Range | |
| 3M | 1 Ribs | 0.12″ (3.0mm) | 0.08″ (2.0 mm) | 60o | 7.1″ – 29.5″ (180mm – 750 mm) | |
5M | 1 Ribs | 0.20″ (5.0mm) | 0.12″ (3.0 mm) | 60o | 0.21″ (5.3 mm) | 11″ – 59.1 “ (280 mm-1550mm) |
| 2 Ribs | 0.39″ (9.8mm) | |||||
| 3 Ribs | 0.59″ (15.1mm) | |||||
3M | 1 Ribs | 0.28″ (7.0mm) | 0.20″ (5.0 mm) | 60o | 0.33″ (8.5mm) | 19.7″ – 90.6 “ (500mm-2300 mm) |
| 2 Ribs | 0.61″ (15.6mm) | |||||
| 3 Ribs | 0.95″ (24.1mm) | |||||
3M | 1 Ribs | 0.43″ (11.0mm) | 0.28″ (7.0 mm) | 60o | 0.52″ (13.2mm) | 28″ – 90.6 “ (710mm-2300 mm) |
| 2 Ribs | 0.96″ (24.4mm) | |||||
| 3 Ribs | 1.48″ (37.6 mm) | |||||
